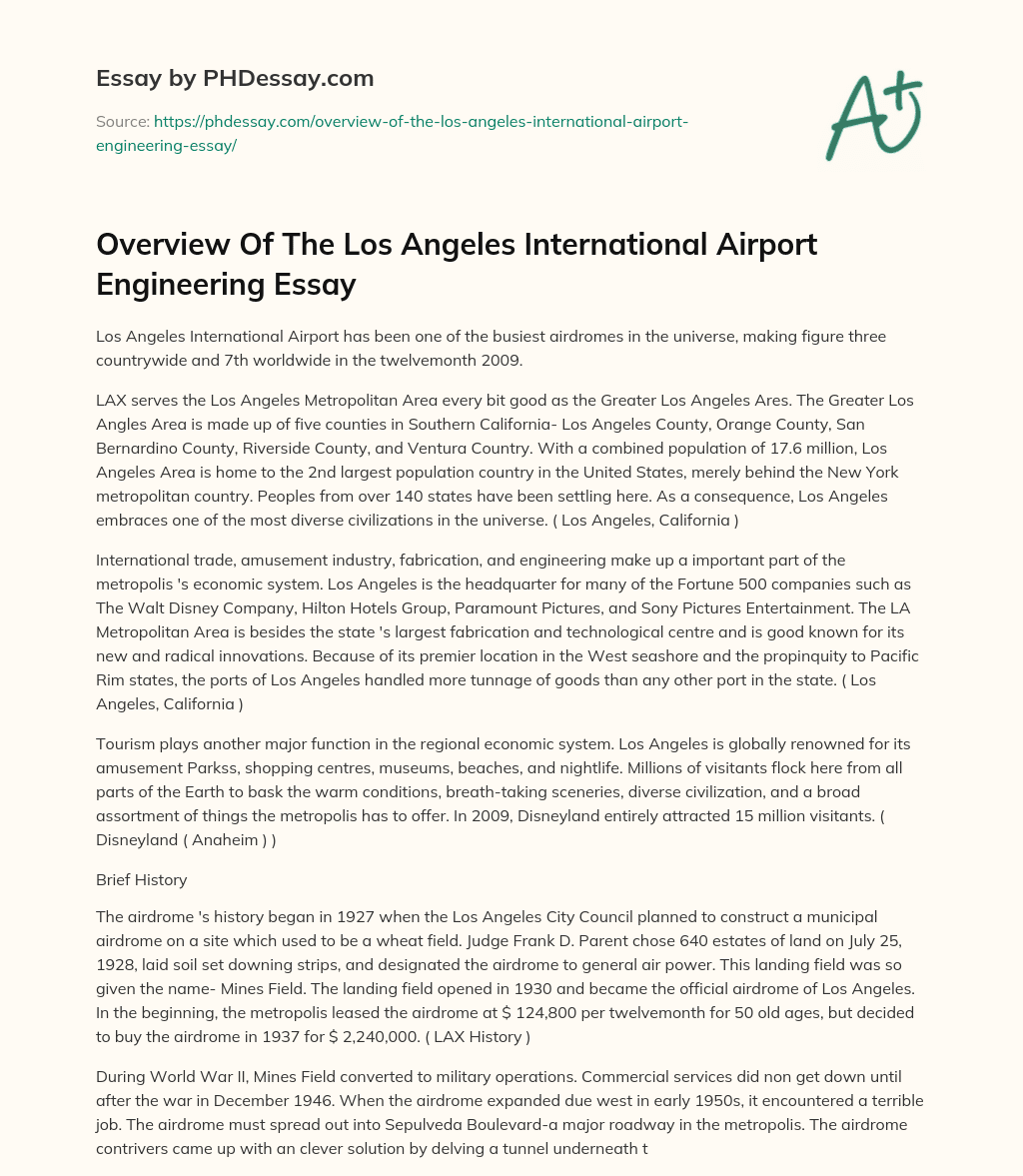

Overview Of The Los Angeles International Airport Engineering Essay

Category Airport
Essay type Research
Words 4334 (17 pages)
Views 722
Table of contents

Los Angeles International Airport has been one of the busiest airdromes in the universe, making figure three countrywide and 7th worldwide in the twelvemonth 2009.

LAX serves the Los Angeles Metropolitan Area every bit good as the Greater Los Angeles Ares. The Greater Los Angles Area is made up of five counties in Southern California- Los Angeles County, Orange County, San Bernardino County, Riverside County, and Ventura Country. With a combined population of 17.6 million, Los Angeles Area is home to the 2nd largest population country in the United States, merely behind the New York metropolitan country. Peoples from over 140 states have been settling here. As a consequence, Los Angeles embraces one of the most diverse civilizations in the universe. ( Los Angeles, California )

International trade, amusement industry, fabrication, and engineering make up a important part of the metropolis 's economic system. Los Angeles is the headquarter for many of the Fortune 500 companies such as The Walt Disney Company, Hilton Hotels Group, Paramount Pictures, and Sony Pictures Entertainment. The LA Metropolitan Area is besides the state 's largest fabrication and technological centre and is good known for its new and radical innovations. Because of its premier location in the West seashore and the propinquity to Pacific Rim states, the ports of Los Angeles handled more tunnage of goods than any other port in the state. ( Los Angeles, California )

Don't use plagiarized sources. Get Your Custom Essay on

Overview Of The Los Angeles International Airport Engineering Essay

just from $13,9 / page

get custom paper

Tourism plays another major function in the regional economic system. Los Angeles is globally renowned for its amusement Parkss, shopping centres, museums, beaches, and nightlife. Millions of visitants flock here from all parts of the Earth to bask the warm conditions, breath-taking sceneries, diverse civilization, and a broad assortment of things the metropolis has to offer. In 2009, Disneyland entirely attracted 15 million visitants. ( Disneyland ( Anaheim ) )

Brief History

The airdrome 's history began in 1927 when the Los Angeles City Council planned to construct a municipal airdrome on a site which used to be a wheat field. Judge Frank D. Parent chose 640 estates of land on July 25, 1928, laid soil set downing strips, and designated the airdrome to general air power. This landing field was so given the name- Mines Field. The landing field opened in 1930 and became the official airdrome of Los Angeles. In the beginning, the metropolis leased the airdrome at $ 124,800 per twelvemonth for 50 old ages, but decided to buy the airdrome in 1937 for $ 2,240,000. ( LAX History )

During World War II, Mines Field converted to military operations. Commercial services did non get down until after the war in December 1946. When the airdrome expanded due west in early 1950s, it encountered a terrible job. The airdrome must spread out into Sepulveda Boulevard-a major roadway in the metropolis. The airdrome contrivers came up with an clever solution by delving a tunnel underneath the airdrome track, so auto traffic will non be affected by the enlargement. This sub-airport tunnel was the first of its sort any where in the universe. ( LAX History )

Before the morning of Jet Age, maestro contrivers of LAX called for a important airdrome update. Most of today 's airdrome substructure including the terminuss, taxi strips, control tower and tracks were built between the old ages of 1957 through 1965. The iconic Theme Building was the centrepiece of this awaited undertaking. The edifice was retro-futuristically designed into the form of a winging disk, and it hosts a rotating eating house. Walt Disney Imaginers installed particular consequence illuming onto the Theme Building in 1997, and the colourss can be adjusted to reflect particular occasions. Today, the Theme Building is place to the Encounter Restaurant. ( Los Angeles International Airport )

To expect for the addition in air travel during the 1984 Summer Olympics Games, the direction spent $ 700 million to spread out and update the airdrome. All terminuss were split into three degrees, with the top floor for going, in-between floor for fining and the bottom floor for geting. Planners besides built Tom Bradley International Terminal to manage turning international traffic demands. Terabit costs $ 123 million. The international terminus was named after Tom Bradley, the metropolis 's first African American city manager.

In 1988 and 1989, LAX underwent a series of Reconstruction undertakings and betterments. Runway 24L-6R was wholly rebuilt. All bing tracks received touchdown visible radiations and center line. Many terminuss got more square footage, better fining countries along with more Gatess. Planners besides decided reconstruct Runways 24L/6R its and taxi strips to farther suit the larger wing ps of Boeing 747.

Figure -LAXpectations streamer

Today, LAX is undergoing an ambitious betterment plan called LAXpectations. The undertaking includes upgrading the Tom Bradley International Terminal, building a trade name new terminus, renovating the current cardinal terminal country, put ining track position visible radiations, and put ining a film editing border baggage testing system.

( See Figure 1 )

The end of the multibillion betterment plan is to supply a better going experience for all riders while guaranting the highest safety criterions. In mid-2008, the airdrome finished retracing Runway 7R/25 to forestall track incursions and to suit following coevals Airbus A380s. The following few old ages will surely be the most exciting period in the history of the airdrome. More inside informations about the betterment plan will be discussed in ulterior subdivisions.

Existing Facilities

Los Angeles International Airport presently uses four near-parallel runways-6L/24R, 6R/24L, 7L/25R, and 7R/25L. They are 8,925 pess, 10,285 pess, 12,091 pess, and 11,096 pess in length, severally. Runways 6L/24R and 6R/24L are located on the north side of the terminuss ; while tracks 7L/25R and 7R/25L were built on the south side of the terminuss. With a breadth of 200 pess, 7R/25L is the widest of four tracks. The other three are all 150 pess in breadth. ILS and DME approach systems were standardized on all four tracks. The airfield lift is 126 pess. Between the North and the south landing field stands the 277 pess tall, palm tree shaped air traffic control tower. The tower handles all clearance bringing, flight informations, and gate-hold places, while each of the four tracks is operated by local control and land accountants. ( Administration )

By and large talking, IFR aircrafts should hold a separation of three stat mis laterally and one 1000 pess vertically. One exclusion to this regulation is the coincident attack of the parallel tracks, which requires a separation of 4,300 pess. This is to forestall coincident attack at immediate tracks. The 4,300 pess of separation allows for two aircrafts to set down at the same clip on two non-immediate tracks, for illustration, on ILS 24L and ILS 25R.

Pilots must hold the proper aircraft equipments including a transponder, and winging experiences to run at the airdrome. This is the general regulation under category Bravo, which all aircrafts receive radio detection and ranging separation. Pilots under Class B air space will be given a squawk codification. When nearing the airdrome, pilots are recommended to reach the tower at a distance 30 to forty stat mis, but the pilot must inform the accountant is he or she is unable to wing the attack. This is particularly the instance under low visibleness fortunes. ( Stearns )

Los Angeles International Airport uses nine rider terminuss, numbered 1 through 8, plus the primary international terminal-Tom Bradley International Terminal ( TBIT ) . Terminals were arranged in the form of the missive `` U '' . The terminal cringle starts at World Way Drive North, on the west side of South Sepulveda Blvd. Once come ining the airdrome, autos make a counterclockwise circle in the order around Terminals 1, 2, 3, Tom Bradley International Terminal, and so onto Terminals 4, 5, 6, 7, 8.

All nine terminuss are split into three degrees. With the exclusion of Tom Bradley International Terminal, the eight terminuss uses the upper degree for goings, in-between degree for fining and lower degree for reachings. Tom Bradley International Terminal combines fining and going into in-between degree while using the top degree for eating houses. Just like the other eight terminuss, the lower degree of Tom Bradley is dedicated to geting riders. Two degrees of roadways allow autos and coachs to straight entree the fining degree and the arrival degree for the terminuss 1 through 8. Travelers can easy entree all degrees of the same terminus by stepss, escalators, or lifts. Dividing up the reachings and fining degrees help eases congestions for the auto traffic.

Because nine terminuss do non complect, shuttle coachs provide the quickest manner for riders to go between terminuss. The lower degree accommodates ground transit such as cab, shared drive new waves, air hose birds connexions and coachs. Shuttle buses Michigans at each terminus about one time every 12 to fifteen proceedingss. Walking between terminuss is ever an option for reassigning riders ; nevertheless it can take more than 30 proceedingss to walk to the terminus located at the other side of the cringle.

Most of the terminal substructure, including Terminal 2, 3, 4, 5, 6, and 7, were built back in the early 1960s, Terminal 1 and TBIT opened to the populace in 1984, and 1988, severally. ( LAX History ) Even though LAX uses nine independent terminuss, gate Numberss do non reiterate. ( See Table 1 ) In other words, every gate figure is dedicated to a individual terminus. For illustration Terminal 1 uses Gatess 1 through 15, and Terminal 2 starts the gate count at gate 21 and goes up to gate 28.

Terminal

Number of Gates

Gates

1

15

1-3, 4A-4B, 5-14

2

11

21-21B, 22-22B, 23, 24-24B, 25-28.

3

13

30, 31A, 31B, 32, 33A, 33B, 34-36, 37A, 37B, 38, 39

4

14

40, 41, 42A, 42B, 43, 44 45, 46A, 46B, 47A, 47B, 48A, 48B, 49B

5

14

50B, 51A-51B, 52A-52B, 53A-53B, 54A-54B, 55A, 56, 57, 58A, 59

6

14

60, 61, 62-62A, 63-66, 67A-67B, 68A-68B, 69A-69B

7

11

70A-70B, 71A-71B, 72-74, 75A-75B, 76, 77

8

9

80-88

Terabit

12

101-106, 119-123

Table 1-Terminals and Gates

Tenants and Users

More than 60 air hoses have regular flight services to and from Los Angeles International Airport. Together, these air hoses connects rider with 87 domestic and 69 international metropoliss. With 15.1 per centum in airdrome rider traffic, American Airlines is largest air hose in operating at LAX. United Airlines and Southwest Airlines besides make up a important rider count at 14.83 and 12.44 per centum, severally. Australian airliner Qantas is the largest foreign operator, with 2 per centum of entire riders. ( LAWA )

The flights between operated by Singapore Airlines between LAX and Singapore is the 2nd longest non-stop flight between any two airdromes in the universe, merely puting behind the Newark-Singapore path. Flight SQ38 from Singapore Changi Airport to Los Angeles International takes 16 hours while winging great circle path of 9,134 stat mis. The return flight SQ37 from Los Angeles to Singapore is an even longer flight at 18 hours and 10 proceedingss. Flight SQ37 covers a distance of 8,771 stat mis. Both extremist long flights utilize Airbus A340-500. ( Non-Stop Flight )

Since the Los Angeles Area is home to the largest Asiatic population country in the state, LAX airdrome has most flights to Asia than any other airdromes in the state. The airdrome is frequently referred to as the `` Gate Way to Asia '' . The growing in traffic between LAX and Asiatic metropoliss has been turning significantly of all time since the TBIT was built in the 1980s. In fact, LAX entirely has six Chinese bearers in operation. Cross-Pacific flights derive a big part of income for the air hoses because burden factors average above 80 per centum ( LAX: Gateway to Asia )

Landmark Aviation is the airdrome 's concern activity FBO ; it is in operation 24 hours a twenty-four hours, 7 yearss a hebdomad. The installation is located South of 7R/25L and has the capableness to function all sizes of concern aircrafts up to the size of Boeing 767. Everyday services include valet parking, conference room, VIP room, pilot 's sofa, flight planning room, aircraft care. ( Landmark Aviation Airport Services )

LAX is home base of the Coast Guard Air Station Los Angeles. Three HH-65 Dolphinfishs are based at the airdrome. Mission of the air station includes hunt and deliverance, navigation support, and general military operations. The station works closely with the lifesavers throughout the country in helping drop and H2O deliverance.

Airport Activity

In 2009, the airdrome recorded 56,520,843 enplanement riders, the lowest figure in three old ages. The largest growing during that period occurred in twelvemonth 2004 when Numberss grew 10.61 % over the old twelvemonth. After the twelvemonth 2004, enplanement growing slows down and even goes into diminution in the past three old ages. . Airport has been turning steadily all the manner up to the twelvemonth 2000 when the enplanement riders reached 67,303,182, but the airdrome activity plummeted significantly in twelvemonth 2001, and reached the low point of 54,982,838 enplanements in twelvemonth 2003. 2001 Terrorist Attacks had evidently caused the diminution in the air travel industry. Despite the initial tendency of recovery after twelvemonth 2001, the figure of enplaned riders is still significantly below pre-9/11 degrees. ( See Figure 3 Below ) ( Statistics Volume of Air Traffic )

Figure -Enplanement 2004-2009 ( Statistic Ten Year Summary Passengers )

Like most other airdromes, LAX rider enplanement is non uniformly distributed throughout the twelvemonth. The monthly norm of twelvemonth 2009, derived by spliting one-year enplanement by 12, is 4,710,070. The standard divergence is 490,272 ; hence the Numberss are still comparatively close to its mean. Enplanement activity spiked in the month of July with more than 6 million riders, and it reached the lowest point in February with merely over 4.3 million riders. ( See Figure 4 below ) Planners must be cautious about monthly norms when it comes to capacity related determinations because non merely activity have peak month, but besides peak twenty-four hours an even peak hr. An efficient airdrome must be able to manage traffic when activity reaches far beyond mean enplanement. For this ground, monthly norm has limited value for airdrome contrivers.

Figure -Year 2009 Monthly Enplanement ( Statistics Volume of Air Traffic )

Top 5 busiest air hoses in falling orders are American Airlines, United Airlines, Southwest Airlines, Delta Airlines, and Alaska Airlines. The top five air hoses fly largely domestic finishs. Alaska Airlines carries the most international riders among the top five air hoses, while Southwest Airlines operates entirely within U.S. boundary lines. ( LAWA )

Aircraft operations at Los Angeles International Airport in twelvemonth 2009 are made up of 68.8 per centum air bearer, 28.5 per centum air cab, 2.5 per centum general air power, and less than.4 percent military. ( See Figure 5 below ) ( Statistics Volume of Air Traffic ) The standard divergence of the entire operation for the past five twelvemonth is merely over 20,000. From the operation statistics, it is clear that LAX operate chiefly air bearers and air cab since these two class makes up 97 per centum of airdrome activity Operations for the past twelvemonth declined drastically. Number of operations decreased from 622,506 in 2008 to 544,833 in 2009. It is deserving observing that air cab operation declined by about 50 per centum from 150,561 in 2008 to 86,919 in 2009.

Despite the heavy operation at LAX, merely six aircrafts are based at the airdrome. Four of which are military chopper, and the other two are jets. This figure is improbably low for the airdrome the graduated table of LAX. In comparing, the non-commercial Van Nuys Airport ( VNY ) in San Fernando Valley has 709 based aircrafts. ( Administration )

Type of Opertion

2005

2006

2007

2008

2009

Air Carrier

454,934

463,341

467,193

453,232

438,059

Air Taxi

178,017

174,745

193,930

150,561

86,919

General Aviation

15,071

16,142

17,217

16,397

16,797

Military

2,607

2,614

2,614

2,316

3,058

Entire

650,629

656,842

680,954

622,506

544,833

Figure -Five Year Operation ( Statistics Volume of Air Traffic )

Management

Los Angeles International is one of the four airdromes operated under the Los Angeles World Airports System. The other three airdromes are LA/Ontario International ( ONT ) , Van Nuys ( VNY ) and LA/Palmdale Regional ( PMD ) . City of Los Angeles owns and operates all four airdromes. LAX is the primary public airdrome in the Los Angeles Area. LA/Ontario and LA/Palmdale operates commercial service at a much smaller graduated tables, while Van Nuys handles the busiest general air power traffic in the universe. ( LAWA )

The metropolis appoints seven airdrome commissioners to regulate airdromes of Los Angeles World Airports. The mission of this board is to do policies that will profit the airdrome riders and the community. Seven members form the board of commissioner, each functioning five twelvemonth footings. The board members are appointed by city manager and approved by the metropolis advocate ; they are an elect squad of concern professionals, community leaders, urban contrivers, lawyers, and bookmans. Board 's docket and studies are often published for the populace on the Los Angeles World Airport web site.

Jeff Fitch is the current director, deputy executive of operations and care of Los Angeles World Airports. Duties of airdrome director include security, safety, terminal and landside operations. Having the background as the Commander of Operations at Grand Forks Air Force Base and general director of terminal operations at Seattle Tacoma International Airport, Mr. Fitch gained extended experience in airdrome direction in both civilian and military sectors. ( L.A. World Airports )

Airport Issues

In recent old ages, incursion incidents and outdating terminal substructures are the two chief issues endangering the hereafter developments at Los Angeles International Airport. This subdivision will discourse the significance behind those issues, and their solutions.

Runway Incursions

LAX is notoriously known for its hapless track safety records. From twelvemonth 2000 to 2003, LAX has the highest figure of runway incursions of all commercial airdromes in the state. The airdrome experienced 16 incursions in twelvemonth 2006 through 2007, four of which are classified as serious. The closest call occurred on August 16, 2007, between Westjet Flight 900 and Northwest Flight 180. After set downing on track 24R, Westjet Flight 900 was trying to traverse the track 24L while Northwest Flight 180 is in the center of takeoff axial rotation. The two aircraft came within 40 pess. Runway incursions must be reduced and eliminated because it is likely that a ruinous clang will happen. ( Air Safety Week, 2007 )

Although human mistakes due to miscommunications were the chief cause for most of the track incursion incidents, the blemished design of tracks besides played a major function. All aircrafts set downing at the two outer most tracks, 6L/24R and 7R/25L, must traverse the immediate analogue tracks to entree the chief terminuss. To farther complicate this issue, parallel tracks were laid out excessively closely, so aircrafts go outing the outer runways merely have limited infinite to halt before traversing into the nearby track. ( Air Safety Week )

Under the guidelines of the Federal Aviation Administration 's Runway Safety Program, legion options were reviewed by the maestro contrivers. Ultimately, a halfway taxi strip became the most plausible solution. Several undertakings are specifically designed to cut down the likeliness of future track incursions, and to better the overall safety of the landing field.

At the halfway piece of the major renovation undertaking is the $ 333 million dollar South Airfield Improvement Program ( SAIP ) . Approximately $ 250 million were spent to relocate the track, and the other $ 85 million went to the new taxi strip undertaking. The support came from many beginnings including landing fees, Federal Airport Improvement Funds, airdrome operating gross, and airport capital betterment financess.

The first measure of the South Airfield Improvement Program was to pulverize the track 25L/7R. Then an indistinguishable track 25L/7R was rebuilt 55 pess south of the old track. All track lighting, navigational AIDSs and other public-service corporations had to be relocated as the consequence of this resettlement. Next, a new taxi strip was constructed between the two parallel tracks. The new taxi strip gives more infinite for geting aircrafts on the outer track to taxi on until the aircrafts are given the authorization to traverse the interior track. The taxi strip will probably to cut down most types of track incursion instances ; moreover, it minimizes the taxiing clip for aircrafts. ( Los Angeles International Airport )

Besides the Southern Airfield Improvement, track position visible radiation is another state-of-the art engineering that helps forestall future incursions. These visible radiations warn the pilots when the track being crossed is in usage, so pilots are less likely to traverse an active track. The track position visible radiation undertaking is a joint attempt between the FAA and the Los Angeles World Airport Authority ; the entire cost is estimated at $ 7.7 million.

Facility Improvements and Expansions

Since most of the terminus installations were built prior to 1980s, airdrome is get downing to demo marks of restraint due to its skyrocket growing. Terminals were non designed to manage today 's airdrome activity when they were built in the sixtiess ; really few Gatess can even suit Boeing 747s. Furthermore, the E, North, and south sides of the airdrome are heavy residential vicinities, so it is hard for the airdrome to spread out. As the consequence of the airdrome 's ain success, LAX was get downing to lose international fight. From twelvemonth 2000 through 2006, LAX had lost 12 % of international riders. Some foreign bearers avoids LAX merely because of its out-of-date terminuss, alternatively, they choose more modern airdromes such as San Francisco International. ( Oldham ) Losing riders is non merely job for the airdrome, but the whole country of Southern California suffers as the consequence. Since the airdrome is one of the economic power house in the country, losing competiveness may take to occupation cuts and decreased foreign trade. In other words, it will both straight and indirectly affect the overall economic well being of Southern California.

Because the Tom Bradley International Terminal was built more than two decennaries ago, a renovation is necessary to run into the of all time increasing demands of future rider traffic. TBIT is presently undergoing a major face lift to do many facets of international air going more comfy and efficient. Ticketing countries, in-migration lines, going countries, and more efficient HVAC systems are merely some of the targeted betterment countries. More boarding Gatess will be modified to manage larger jets like Boeing 747s and Airbus A380s. The new luggage showing system frees up the infinite in the cheque in country by traveling sensing equipment to behind the air hose counters. New luggage testing units besides reduces the congestion in the check-in countries and the delay clip for riders. LAWA contracted Siemens Logistics for the installing of modern digital shows that will break direct the flow of riders. The entire cost of TBIT betterment is estimated at $ 723.5 million.

Terminals 1 through 8 will besides acquire a security system upgrade similar to the 1 at TBIT. Explosion sensing systems, detonation hint Stationss, and closed circuit telecastings are being integrated into the bing security system. This undertaking costs $ 577 million. In add-on to the security systems, all terminuss will have minor modern-day touches. ( Los Angeles International Airport )

Even though the freshly developed TBIT will pull more riders to LAX, it is non sufficient to manage the addition in international rider activity. To accommodate to the growing in new coevals superjumbo jets, the program to construct a trade name new terminus, Midfield Satellite Concourse, was passed by the airdrome council. The new multitude will be capable of managing jets the size of Airbus A380s. An belowground tunnel allows people to entree the new multitude which is about one-fourth mile West of the current terminus composite, and it will use a people mover system. Ten Gatess and an estimated 500,000 to 600,000 square footage of terminal infinite will be added on at a cost of $ 1.2 million. The new multitude undertaking is scheduled to finish in 2012. Airport council besides called for an enlargement on the current TBIT Terminal. Additional Gatess will be added on the west side of TBIT to manage increasing broad organic structure jets. ( Hymon )

Personal Observations and Decision

The worst record in runway incursions is surely non the acknowledgment any airdrome want to have. Even though we recognize that all human existences make errors, errors are merely unbearable in the air power industry. In response to the hapless safety records, maestro contrivers launched a series of undertakings with the chief intent of cut downing the likeliness of human mistakes. The new centre taxi strip allows more infinite for land aircrafts to steer, hence, cut downing the opportunity for runway incursions. Runway position visible radiation farther diminishes the opportunity of aircraft hits by warning the pilots of active traversing track. LAX should be sing a important decrease in track incursion incidents in the hereafter.

The airdrome is in great demand of modernizing because the terminuss built half a century ago were merely non designed to manage the demands of the twenty-first Century. Renovating Tom Bradley International Terminal along with the other eight terminuss will pull more bearers to LAX. However, the airdrome is faced with a more serious issue- the deficiency of infinite for enlargement. The metropolis itself has grown to a point that the airdrome is wholly surrounded by edifices, so contrivers have about no infinite for the airdrome to spread out. All future airdrome terminal enlargements must be taken west of the present terminus composite, the belongings that is presently used for aircraft hangers and lading installations. It will be interesting to see the executable options contrivers are coming up with.

On October 21, 2008, A Qantas Airlines Airbus 380 with 450 people landed at LAX. This marks the beginning of the superjumbo jet service in the West seashore, and is decidedly an indicant that more international riders are taking LAX.

From the individual soil set downing strip in a wheat field to the 3rd busiest airdrome in the United States, LAX has come a long manner. Airport 's success is straight related with the local community. Today, southern California 's economic system has ne'er been so mutualist upon the air transit system. As the local economic system skyrocketed, airdrome must accommodate to the turning demands without giving safety and efficiency. The local community airdrome director, commissioners, and maestro contrivers must work together to guarantee the success of LAX in the twenty-first Century.

Appendix: LAX Terminal Diagram and air hoses, SAIP
